NJ Phillips 0.5mL Metal Poultry Injector

Highly accurate, quality metal device.
Calibrated barrel to administer in reliable 0.1mL increments.
Supplied with draw-off spear and feed tube.
Positive dose locking mechanism.

Download Product Leaflet

Download Product Flyer

NJ Phillips 0.5mL Metal Poultry Injector PAS985-Product Flyer. (1.74 MB) – PDF

NJ Phillips 0.5mL Metal Poultry Injector PAS985-Product Leaflet. (1.1 MB) – PDF

Overview & Resources



PDF

User Guide Download Information

NJ Phillips 0.5mL Metal Poultry Injector PAS985-Product Flyer. (1.74 MB) – PDF

NJ Phillips 0.5mL Metal Poultry Injector PAS985-Product Leaflet. (1.1 MB) – PDF

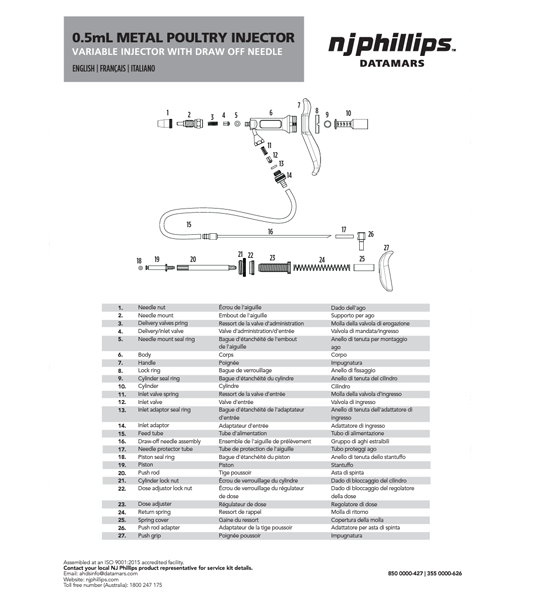

METAL POULTRY INJECTOR

Product	Dose Range	Increments
0.5mL Metal Poultry Injector	0.1mL – 0.5mL	0.1mL

• A highly accurate, quality metal device.
• Calibrated barrel to administer in reliable 0.1mL increments.
• Supplied with draw-off spear and feed tube.
• Positive dose locking mechanism.

SPARE PARTS KITS AVAILABLE

Product	Code	SAP Code	Part No.
Major Service Kit	WX1380	850 0000-431	3 (x2), 4 (x2), 5, 8, 9, 10, 24

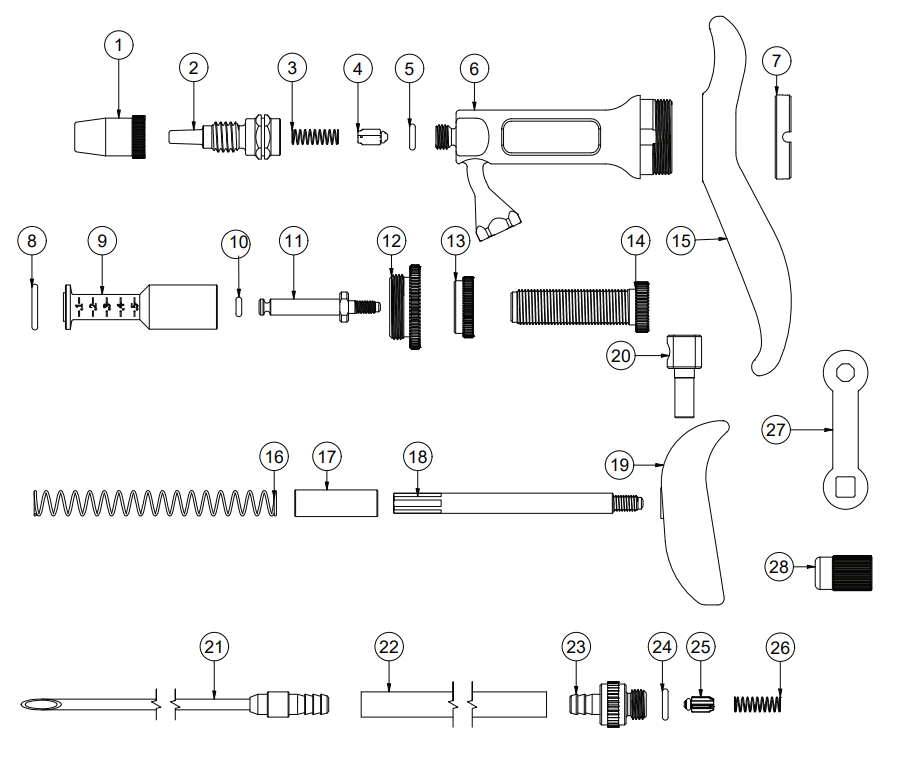

0.5mL Metal Poultry Injector Parts Breakdown

1. Needle Nut	11. 0.5mL Piston	21. Inlet Adaptor/ Draw Off Needle Assembly
2. Needle Mount Luer	12. Barrel Lock Nut	22. Feed Tube P.V.C.
3. Spring	13. Lock Nut	23. Inlet Adaptor
4. Valve and Seal Ring	14. Thread Dose Adjuster	24. Seal Ring (010-S70)
5. O-Ring (008-N70)	15. Finger Grip	25. Valve and Seal Ring
6. Barrel Cover Assembly	16. Return Spring	26. Spring
7. Lock Ring	17. Spring Cover	27. Needle Hub Spanner
8. O-Ring (013-V75)	18. Pushrod	28. Needle Nut
9. 0.5mL Barrel	19. Push Grip
10. O-Ring (BS005-S70)	20. Pushrod Adapter (Brass)

Looking to get a NJ Phillips 0.5mL Metal Poultry Injector or a Service Kit 4Tags might be able to help! Click HERE to find out more.
