NJ Phillips 4mL Banana Injector
Suitable for banana and other soil injectable products.
Comes with Spear and Brace.
NJ Phillips 4mL Banana Injector PM1165 Product Flyers. (1.39 MB) - PDF
NJ Phillips 4mL Banana Injector PM1165 Products Leaflet. (242 KB) - PDF
Overview & Resources
User Guide Download Information
NJ Phillips 4mL Banana Injector PM1165 Product Flyers. (1.39 MB) - PDF
NJ Phillips 4mL Banana Injector PM1165 Products Leaflet. (242 KB) - PDF
BANANA INJECTOR
| Product | Dose Range | Increments |
| 4mL Banana Injector | 1mL - 4mL | 0.5mL |
• Diesel Injector.
• Suitable for banana and other soil injectable products.
• Comes with Spear and Brace.
IMPORTANT
This instrument has been specifically designed for administration of Diesel. Other chemical formulations may not be compatible with some components.
The manufacturer will accept no responsibility for the consequences should this unit be used to administer any product other than Diesel.
SPARE PARTS KITS AVAILABLE
1mL Kits Available
| Product | Code | SAP Code | Part No. |
| Major Service Kit | WX1576 | 850 0001-235 | 1, 3, 4 (x2), 5 (x2), 9, 10, 11, 12, 28 (x2), 29 |
| Spear Nozzle | WX1567 | 850 0001-233 | 25, 26, 27, 28, 29 |

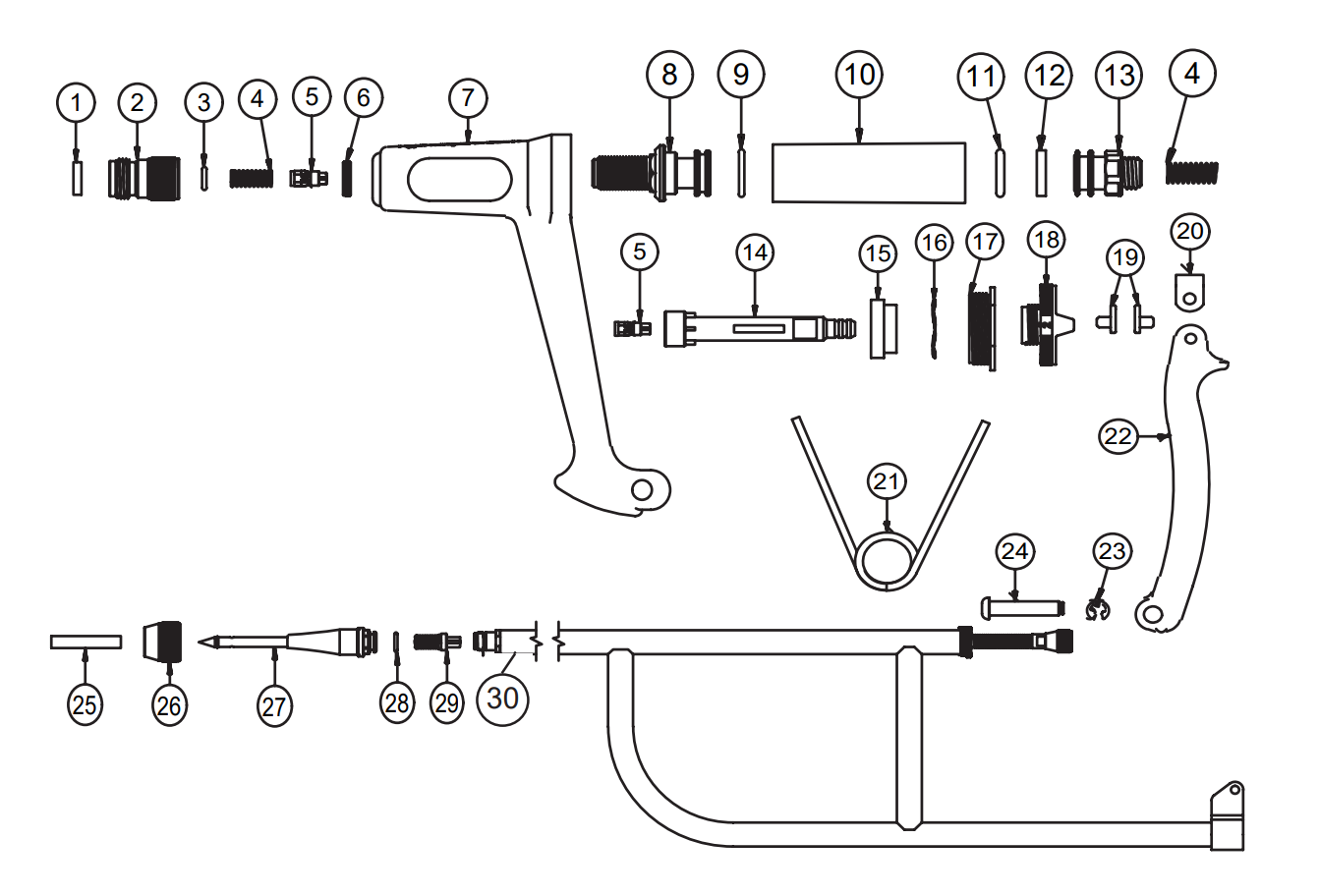

1mL Metal Bottle Mount Injector Parts Breakdown
| 1. Rubber Washer | 11. Seal Ring (111-N70) | 21. Lever Spring |
| 2. Adapter | 12. Lubricating Washer | 22. Lever |
| 3. Seal Ring (010-V75) | 13. Piston | 23. Circlip |
| 4. Spring | 14. Pushrod | 24. Handle Pin |
| 5. Valve | 15. Dose Adjuster Lock Ring | 25. Needle Protector |
| 6. Lock Nut | 16. Wave Washer | 26. Nozzle Nut |
| 7. Handle | 17. Body Plug | 27. Spear Nozzle |
| 8. Delivery Cage | 18. Dose Adjuster | 28. Seal Ring (010-S70) |
| 9. O-Ring (014-N70) | 19. Lever Pad | 29. Valve and Spring |
| 10. 4mL Barrel | 20. Retaining Clip | 30. Spear Brace Assembly |
ACCESSORIES
| Product | Code | SAP Code |
| 2.5L Rigid Backpack | WX46 | 850 0000-445 |
Looking to get a NJ Phillips 4mL Banana Injector or a Service Kit 4Tags might be able to help! Click HERE to find out more.
