NJ Phillips 10mL Metal Lamb Drencher
NJ Phillips 10mL Metal Lamb Drencher Product Flyer. (1.45 MB) – PDF
NJ Phillips 10mL Metal Lamb Drencher Product Leaflet. (834 KB) – PDF
Overview & Resources
User Guide Download Information
NJ Phillips 10mL Metal Lamb Drencher Product Flyer. (1.45 MB) – PDF
NJ Phillips 10mL Metal Lamb Drencher Product Leaflet. (834 KB) – PDF
Metal Lamb Drencher
| Product | Dose Range | Increments |
| 10mL Metal Lamb Drencher | 1.0mL – 10mL | 1mL |
- High flow valve system that handles all lamb drenches.
- Small ‘thick’ nozzle for safety with lambs.
- Long stroke delivery gives exceptional feel when dosing low volumes.
- An extremely robust, durable mental device built for reliability
IMPORTANT
The 10ml Automatic Drencher (referred to as applicator) has been designed for the administration of most solution and suspension drenches and injectable solutions to livestock.
It should never be used for vaccination of small livestock at dose settings of 1ml or less.
As components in this instrument may be affected by solvents in some ‘pour-on’ formulations no responsibility will be accepted by the manufacturer should the instrument be used with such products.
SPARE PARTS KITS AVAILABLE
| Product | Code | SAP Code | Part No. |
| Major Service Kit | WX1726 | 850 0001-257 | 3, 4 (x2), 5 (x2), 6, 10 (x2), 11, 13, 15, 17 |

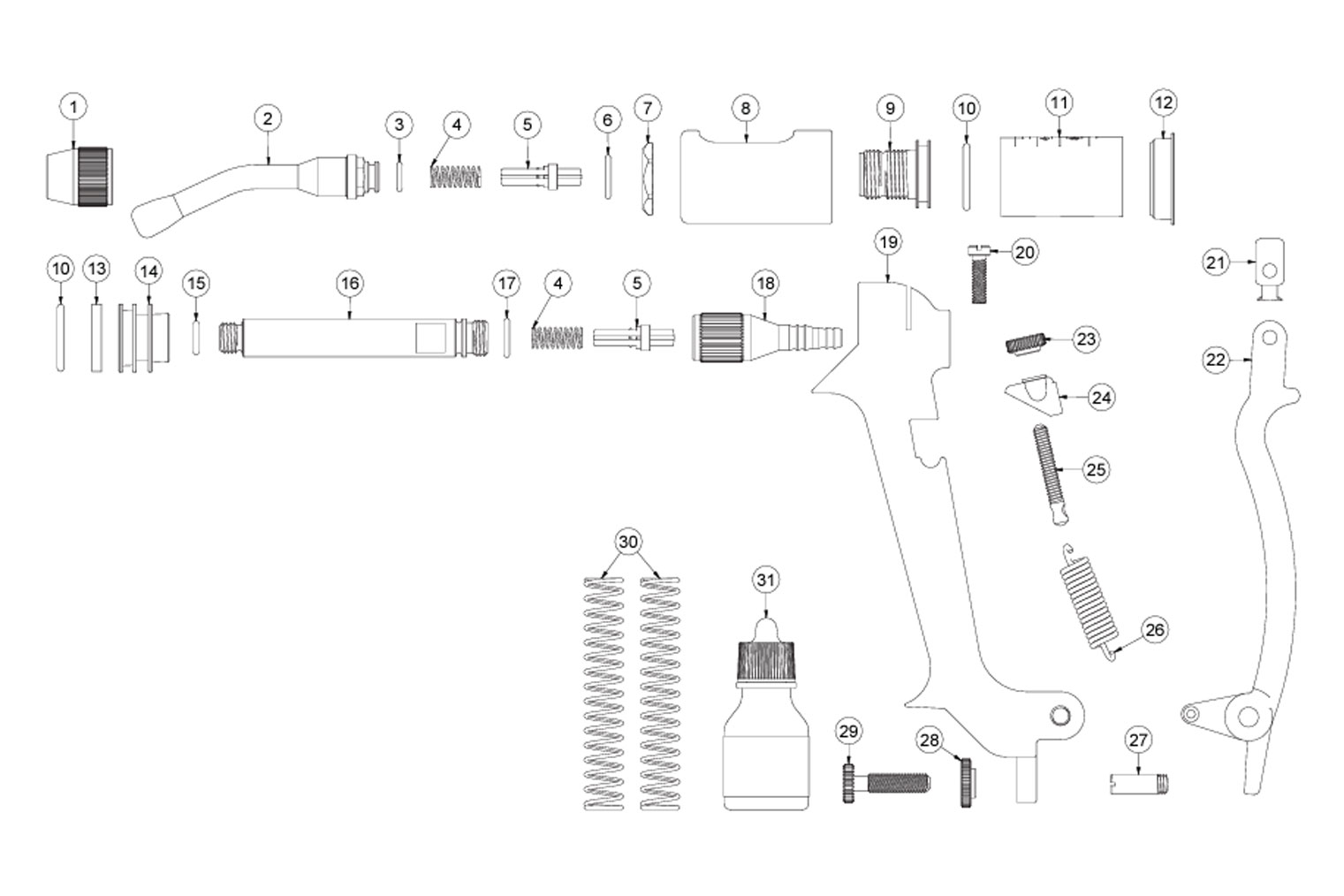

Service Kit Parts Breakdown
| 1. Nozzle Nut | 12. Barrel Spacer Bush | 23. Spring Adjuster Nut |
| 2. Nozzle | 13. Lubricating Washer | 24. Trunnion (Adjuster) |
| 3. Seal Ring (010-S70) | 14. 20mL Piston | 25. Adjuster Spindle |
| 4. Valve Spring | 15. O-Ring (011-N70) | 26. Spring |
| 5. Valve | 16. 10mL Pushrod | 27. Lever Screw |
| 6. Seal Ring (013-N70) | 17. O-Ring (012-N70) | 28. Dose Adjuster Lock Nut |
| 7. Lock Nut | 18. Inlet Fitting | 29. Dose Adjuster Screw |
| 8. S/W Cover | 19. Handle | 30. Feed Tube Spring |
| 9. Delivery Valve Cage | 20. Screw | 31. Lubricant |
| 10. Seal Ring (115-S70) | 21. Lever Pads | |
| 11. 10mL Barrel | 22. Lever |
Metal Lamb Drencher Accessories
| Product | Code | SAP Code |
| Metal Lamb Nozzle | WX1506 | 850 0001-217 |
| Lubricant | WX1510 | 850 0001-220 |
Looking to get a NJ Phillips 10mL Metal Lamb Drencher or a Service Kit 4Tags might be able to help! Click HERE to find out more.
