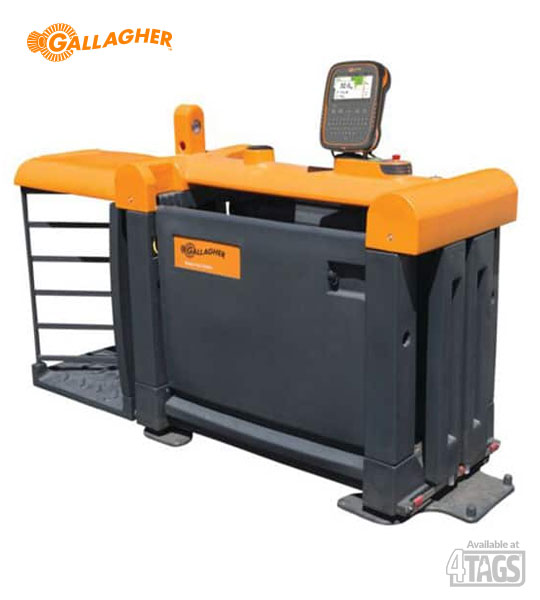

Gallagher Sheep Auto Drafter
The Sheep Auto Drafter is a fully automated weighing and drafting system that is smoother, quieter, and easier to set up and operate than any other sheep drafting product on the market.
Sheep Auto Drafter Brochure (856 KB) PDF
Sheep Auto Drafter Manual (9.45 MB) PDF
Weighing and EID Systems Brochure (3 MB) PDF
Overview & RESOURCES
Firmware / Software
Sheep Auto Drafter Brochure (856 KB) PDF
Sheep Auto Drafter Manual (9.45 MB) PDF
Weighing and EID Systems Brochure (3 MB) PDF
Overview.
| 790mm |
1550mm
|
||
|
2438mm
|
44kg | ||
| Warranty |
1Year
|
Building on the success of the original design, the new version boasts of enhanced features:
- Improved pressure gauge access with safety warning
The pressure gauge now has a movable hard-wearing plastic cover for easy access when needed. This cover has an engraved warning for the maximum air supply pressure of 12 Bar.
- Streamlined bridge design
The BR Reader mount has been removed from the bridge, leaving one swivel mount for a TWR weigh scale.
Gallagher kept all the things that producers love about the previous design:
-
Easy one-person automatic operation
The Sheep Auto Drafter is especially designed to make it easy and intuitive for one person to operate, saving you time and money.Gates automatically open at speed based on drafting rules created either on the Gallagher Animal Performance Software or on your Gallagher TWR Weigh Scale.
A remote control is included for the manual drafting option or to override the automatic drafting mode
-
Greater flexibility: Three-way or five-way drafting
The base model Sheep Auto Drafter comes with the default 3-way pod configuration. An optional pod can be added to achieve up to 5 ways of drafting (additional pod sold separately).
-
Assured quality
New design, but it is still built and assemble in New Zealand for quality and performance you can trust.
- Simple assembly
The Sheep Auto Drafter is simple to assemble and comes with easy-to-understand Quick Start Guide.
Take advantage of the full Gallagher ecosystem and maximise the use of your Sheep Auto Drafter. Create an Animal Performance account to build drafting templates or set drafting rules prior to your session, and your TWR weigh scale will automatically sync, minimising the hassle of making adjustments to the weigh scale during use.
Using The Sorting Unit.
The sorting of animals can be carried out:
Automatically
- Draft by weight
- Reading EIDs and using traits
Manually
- Using the remote (3-way drafting only)
By default, 3-way sorting is configured, however additional sorters can be added to give 5-way or 7-way drafting functionality. Contact your local Territory Manager for further information.
Like the Sheep Auto Drafter, the sorting unit is constructed primarily from composite materials and has pneumatically operated gates, which means it is light, safe to use and very quiet.
In automatic mode, the sorting is controlled by the weigh scale indicator, which sends signals through the Sheep Auto Drafter electronics to the sorting unit.
To enable this function, weight limits or a drafting list (using EIDs) will need to be set up in the weigh scale indicator to control the sorting of animals. To find out how to do this, refer to the weigh scale indicator user manual.
If the sorting unit is under manual control, the commands from the remote are transmitted through the Sheep Auto Drafter electronics to the sorting unit.

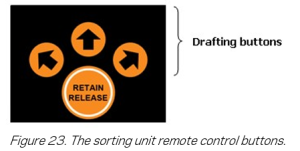

The remote is used to make each drafting decision manually.
For more detailed scenarios covering particular uses of the sorting unit in combination with the Sheep Auto Drafter
To control the sorting direction the operator must set up appropriate weight limits or a sorting list in the weigh scale indicator as the remote can’t be used with 5-way or 7-way drafting.
Redefining sheep weighing and drafting.
Fully automated system that is smoother, quieter and easier to set up and operate than any other sheep drafting product on the market.
Includes a weigh crate, integrated load cells and EID antenna panels, control module with remote and three way draft module. Just add a Weigh Scale and it’s ready to go.
• One-person drafting operation
• Sheep friendly – allows high stock throughput
• Indestructible – composite materials withstand repeated animal impact
• Portable – lightweight and easily transportable

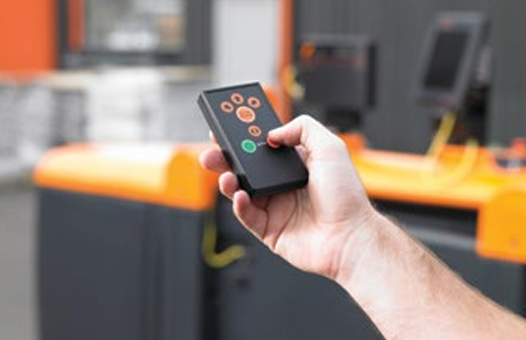

Remote control operation
Includes emergency stop button, auto/manual status & fault lamp.
Flexible
Adjustable sides to handle small lambs to the largest rams.
High visibility control panel
Includes emergency stop button, auto/manual status & fault lamp.

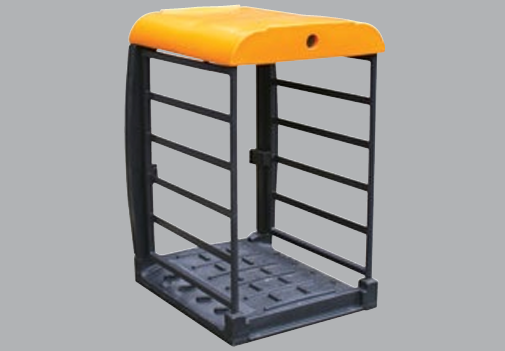

Add-on modular options
Increase EID and drafting capability by adding:
• A plug-in reader controller
• Additional drafter unit to allow up to five way drafting
Looking to get Gallagher Sheep Auto EID Drafter 4Tags might be able to help! Click HERE to find out more.
