Gallagher EID Tag Reader Antenna Panel 600

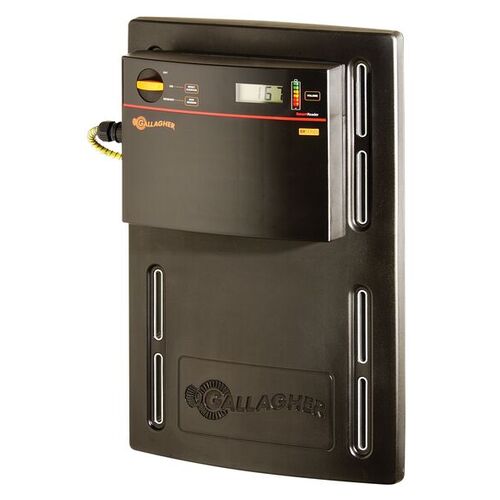

This fixed, hands-free antenna panel automatically scans EID tags as animals walk past or are being weighed in a crush or race. EID tag numbers are recorded within the connected EID Tag Reader Controller or TWR Weigh Scale.
Gallagher EID Tag Reader Antenna Panel 600 User Guide (277 KB) – PDF
Overview & RESOURCES
User Guide Download Information
Gallagher EID Tag Reader Antenna Panel 600 User Guide (277 KB) – PDF
The EID Tag Reader Antenna Panel makes EID reading quick and easy. With no calibration required, the antenna will automatically tune to your chosen Tag Reader Controller or TWR Weigh Scale. Simply mount to the side of your weigh location or race and connect to your EID Tag Reader to start collecting EID data today.
If connecting to a TWR Weigh Scale, Gallagher recommend the “TWR Tag Reader Antenna Panel” or an additional “Antenna Extension Lead”
Overview
|
300mm
|
600mm | ||
| 3.8kg |
50mm
|
||
| Warranty | 1 Year |
Quick and superior reading performance
Up to 1.2m read range when an animal walks past or is being weighed in a crush or race
Easy installation with all hardware included
Simply mount panel using reinforced mounting hardware within your yards and plug in to your TWR Weigh Scale or EID Tag Reader Controller
Reads all ISO electronic identification (EID) ear tags
Compatible with half duplex (HDX) and full duplex (FDX-B) electronic identification ear tags
No EID Reader calibration required
Antenna automatically tunes to your EID Tag Reader Controller, no fiddling or calibration required
Reliable and secure connection
Cables are fitted with high quality, waterproof connectors to connect to your hardware
Tough, farm ready exterior
Fully sealed, waterproof construction built to withstand the harshest of farming environments
External power source – no charging required
The antenna panel is powered by the connected EID controller or TWR Scale

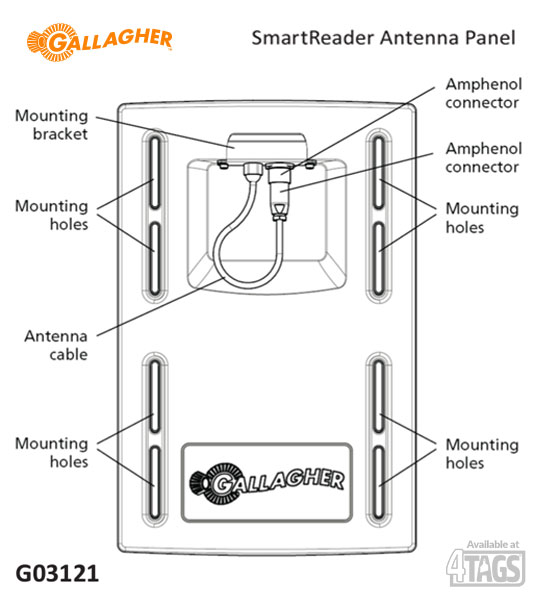

MOUNTING THE ANTENNA PANEL
The Antenna Panel kit contains the following components:
Antenna Panel.
Mounting instructions.
Antenna Panel mounting kit:
- 4 x Washers M8 x 21 mm flat Stainless steel
- 4 x Bolt M8 x 70mm HEX Stainless steel
- 4 x Nut M8 HEX Stainless steel
- 4 x Screw Wood TEK 14 x 10 90mm
- 4 x Screw Wood TEK 14 x 10 65mm
Gallagher recommends the following when installing the SmartReader Antenna Panel:
The Antenna Panel can be mounted onto metal pipe or wood work of the animal handler but not solid steel handler walls.
The edges of the Antenna Panel contain the antenna windings. This means that when the Antenna Panel is mounted, vertical bars should be kept away from the vertical edges of the Antenna Panel and horizontal bars should be kept away from the horizontal edges of the Antenna Panel.
The position of the Antenna Panel installation depends on the type and size of the animals to be scanned and the size of Antenna Panel to be installed.
Gallagher recommends you mount the Antenna Panel temporarily while you determine the most appropriate position.
Mounting the Antenna Panel on a metal animal handler can alter the read range of the SmartReader. Gallagher recommends that the SmartReader is mounted on wood or spaced pipework.
Multiple SmartReaders can be installed in close proximity to each other, so long as they are synchronised to ensure conflicts do not occur between SmartReaders. For further details, see Installing multiple SmartReaders.
Use the defi ned mounting holes, because drilling through the Antenna Panel will damage the antenna.
1. Measure the vertical range of the Electronic ID tags on the animals to be scanned.
2. Determine the average height of the Electronic ID and mark this on the outside of the animal handler.
3. Determine what the Antenna Panel is to be mounted on, wood or pipe work, and prepare the appropriate mounting hardware from the supplied kit.
4. Using the defi ned mounting holes, mount the Antenna Panel on the outside of the animal handler so that the middle of the Antenna Panel matches the average height.
